Grade 8 Nut Sample MTC Certificate
Access a comprehensive, professionally formatted Material Test Certificate according to EN 10204-2004: 3.1 for high-strength Grade 8 Hexagon Nuts (ISO 898-2). Verify the exact documentation your QA teams will receive, featuring chemical composition and mechanical verification including proof load tests.
What's Inside This Grade 8 Nut MTC Certificate
This sample mill test certificate mirrors the rigorous documentation package shipped with every high-strength nut assembly from Ananka Fasteners.
- Full Traceability: Certified with exact Lot No.: LXXX and TC No.: S02/26-XXX linked to the production melt.
- Chemical Breakdown: Detailed results for Carbon (0.433%), Manganese (0.693%), Phosphorus (0.0274%), and Sulfur (0.0315%) ensuring structural integrity.
- Heat Treatment Data: Logs specific Hardening (880°C) and Tempering (550°C) cycles to achieve class 8 properties.
- Mechanical Strength: Verified Proof Load of 126.3 kN against a specified minimum of 125.6 kN.
- Hardness Verification: Recorded results of 29.2, 30.5, 29.2 HRC meeting specified limits.
- Dimensional Conformance: Confirmation of inspection as per DIN 934 specifications.

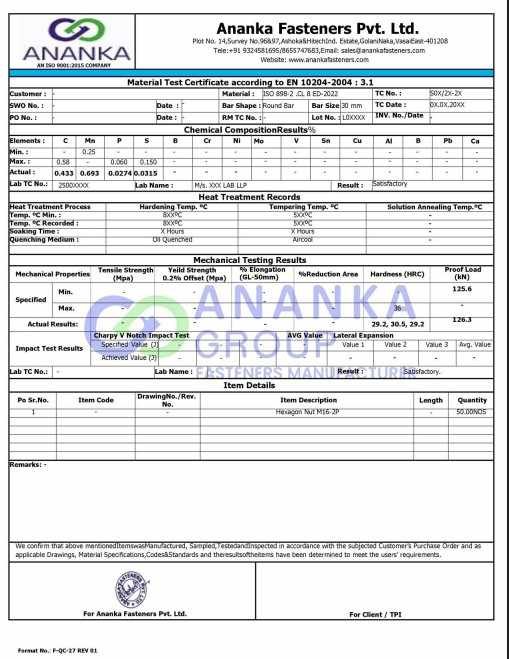

Live Preview: Grade 8 Nut MTC Data
TC Number
S02/26-XXX
TC Date
02/04/202X
Heat Number
HT-G8XXX
Lot Number
LXXX
Proof Load
126.3 kN
Dimensions / Item
HEXAGON NUT M16-2P (DIN 934)
Chemical Composition % (Actual Results)
| Carbon (C) | Manganese (Mn) | Phosphorus (P) | Sulfur (S) |
|---|---|---|---|
| 0.433 | 0.693 | 0.0274 | 0.0315 |
| Max: 0.58 | Min: 0.25 | Max: 0.060 | Max: 0.150 |
Mechanical Properties Verification
| Property | Specified Value | Actual Result |
|---|---|---|
| Proof Load (kN) | Min: 125.6 | 126.3 |
| Hardness (HRC) | Max: 36 | 29.2, 30.5, 29.2 |
Standard References: ISO 898-2 Compliance
Our Grade 8 Nut certificates confirm full compliance with ISO 898-2 standards for mechanical and chemical properties of carbon steel nuts.
| Standard / Requirement | Confirmation on Certificate |
|---|---|
| Dimensional Spec | As per PO Specification (DIN 934). |
| Visual Inspection | 100% visual inspection carried out & found free from defects. |
| Weld Repairs | No Weld Repair Performed. |
| Radioactive Contamination | Material is free from radioactive contamination. |
Ananka Fasteners' Certification Details
We certify that the fastener was manufactured sampled, tested and inspected in accordance with the specification and the results have been determined to meet the requirements of the specification.
Documentation Standard
- EN 10204-2004: 3.1 Standard
- ISO 9001:2015 Compliant
- Full Traceability to Lot Number
Heat Treatments
- Hardening Temp: 880°C
- Tempering Temp: 550°C
- Precise Cycle Management
Testing Conditions
- Proof Load Testing Verified
- Blackening Finish Applied
- Dimensional Conformance Verified
Technical FAQs — Grade 8 Nut MTC Certificate
What heat treatment methodology is tracked on this certificate?
The MTC specifically logs a hardening cycle at 880°C and a tempering cycle at 550°C. These thermal processes are critical for achieving the required hardness and proof load strength for Property Class 8 nuts.
What specific mechanical tests are logged on the certificate?
For Grade 8 nuts, the certificate highlights Proof Load testing (kN) and Hardness testing (HRC). These ensure the nut will not strip or deform under the rated tensile load of its corresponding bolt.
Are dimensional and visual inspections included?
Yes, the certificate confirms 100% visual inspection found free from defects and dimensional conformance according to DIN 934 for Hexagon Nuts.
