HASTELLOY C-22 HEX BOLTS - ASTM F468 / UNS N06022

Name: Ananka Group - India's Leading Fasteners Manufacturer Company
Rating: 5 (451 reviews)

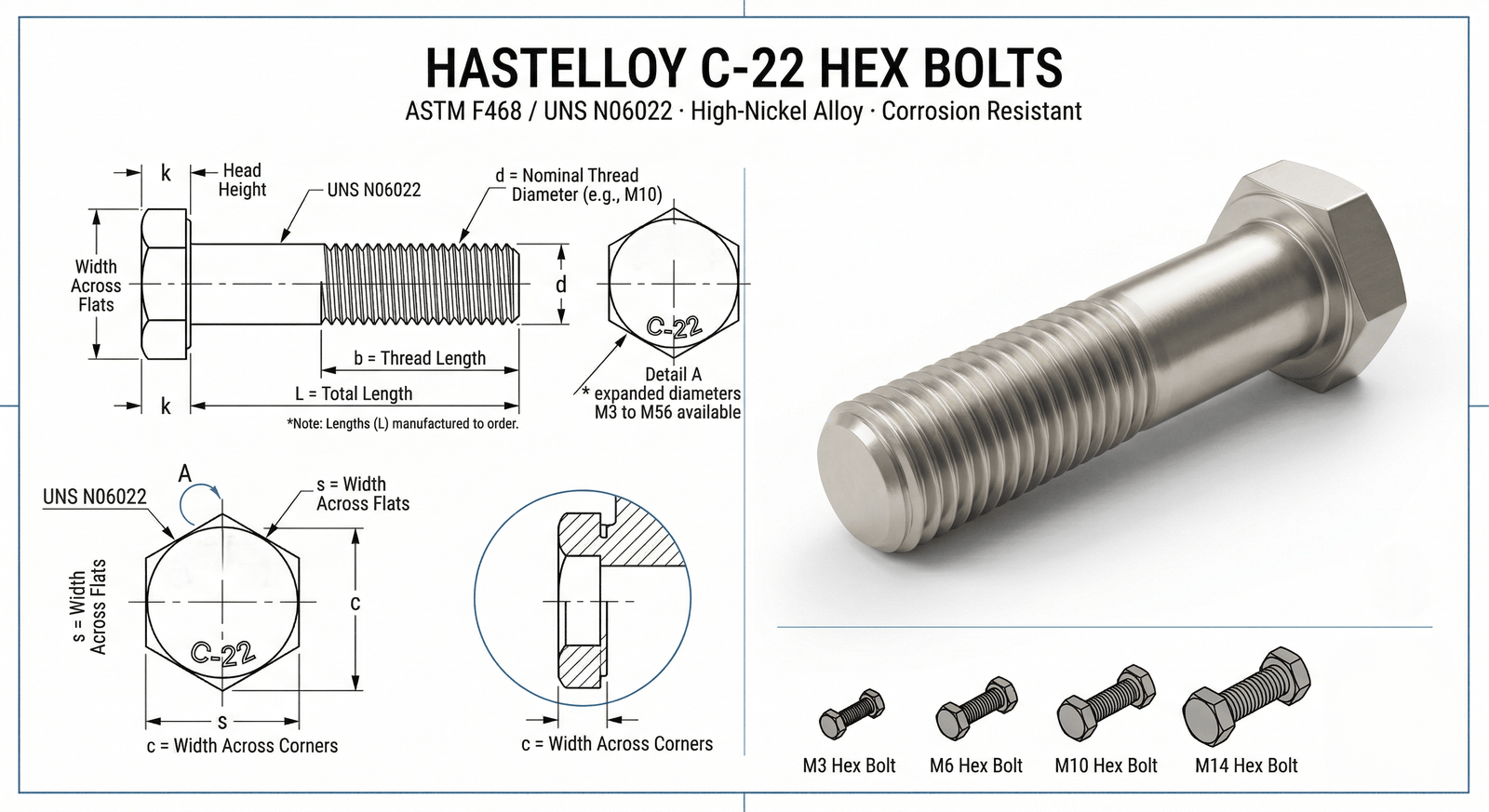

■ Dimensions in mm (DIN 931 / DIN 933)

PART NUMBER	THREAD	WIDTH ACROSS FLATS (W) Max	WIDTH ACROSS CORNERS (C) Min	HEAD HEIGHT (K) Max	PITCH
AN-HB-C22-M3	M3	5.50	6.01	2.00	0.50
AN-HB-C22-M4	M4	7.00	7.66	2.80	0.70
AN-HB-C22-M5	M5	8.00	8.79	3.50	0.80
AN-HB-C22-M6	M6	10.00	11.05	4.00	1.00
AN-HB-C22-M8	M8	13.00	14.38	5.30	1.25
AN-HB-C22-M10	M10	16.00	17.77	6.40	1.50
AN-HB-C22-M12	M12	18.00	20.03	7.50	1.75
AN-HB-C22-M14	M14	21.00	23.36	8.80	2.00

Note: Bolt lengths (L) are manufactured to order. Contact Ananka Group for expanded diameters (M3 to M56) and custom shank lengths.

Material	Hastelloy C-22 (Nickel-Chromium-Molybdenum-Tungsten Alloy)
Standard / Classification	UNS N06022 \| DIN 2.4602 Density: 8.69 g/cm³ Melting Point: 1357 - 1399°C
Mechanical Properties	Tensile Strength: ≥ 690 MPa Yield Strength: ≥ 310 MPa Elongation (%): ≥ 45% Hardness (Rockwell B): ≤ 100 HRB
Chemical Composition (%)	Ni: Balance \| Cr: 20.0 - 22.5 \| Mo: 12.5 - 14.5 \| Fe: 2.0 - 6.0 \| W: 2.5 - 3.5 \| Co: 2.5 Max \| Mn: 0.50 Max \| V: 0.35 Max \| Si: 0.08 Max \| C: 0.015 Max
Manufacturing Specification	ASTM F468 (Standard Specification for Nonferrous Bolts, Hex Cap Screws, Socket Head Cap Screws, and Studs for General Use). Compliant with international material standards including ASTM B574.
Thread	Metric ISO standard. Available in full thread (DIN 933) and half thread (DIN 931) configurations.
Properties & Applications	Delivers exceptional resistance to general corrosion, pitting, crevice corrosion, and stress corrosion cracking. Highly suited for severe environments in Chemical Processing, Power Generation, Pollution Control, Offshore Oil & Gas, Desalination, Marine, and Aerospace industries. Offers superior overall corrosion resistance compared to C-276.
Marking	In accordance with ASTM F468. Fastener heads are forged with Manufacturer Identification (Ananka) and the respective Grade identifier.
Qualification & Acceptance	Independently tested for hardness, thread tolerance, chemical analysis, and supplied with EN 10204 Type 3.1 Material Test Certification.
