| Material |
Hastelloy C-22 (Nickel-Chromium-Molybdenum-Tungsten Alloy) |
| Standard / Classification |
UNS N06022 | DIN 2.4602
- Density: 8.69 g/cm³
- Melting Point: 1357 - 1399°C
|
| Mechanical Properties |
- Tensile Strength: ≥ 690 MPa
- Yield Strength: ≥ 310 MPa
- Elongation (%): ≥ 45%
- Hardness (Rockwell B): ≤ 100 HRB
|
| Chemical Composition (%) |
Ni: Balance | Cr: 20.0 - 22.5 | Mo: 12.5 - 14.5 | Fe: 2.0 - 6.0 | W: 2.5 - 3.5 | Co: 2.5 Max | Mn: 0.50 Max | V: 0.35 Max | Si: 0.08 Max | C: 0.015 Max |
| Manufacturing Specification |

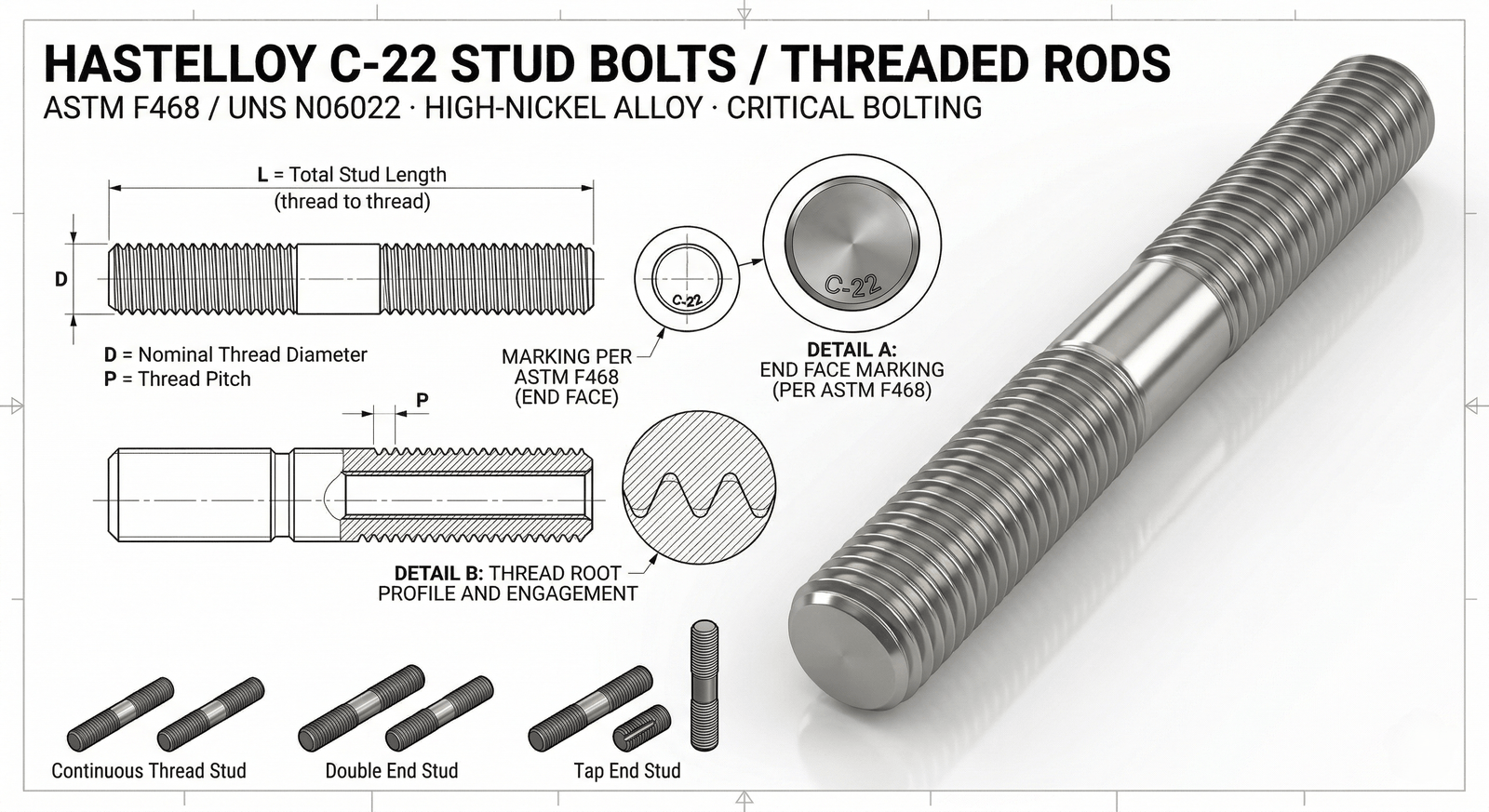

ASTM F468 (Standard Specification for Nonferrous Bolts, Hex Cap Screws, Socket Head Cap Screws, and Studs for General Use). Dimensional tolerances follow DIN 975 / DIN 976 and ASME B18.31.2 for continuous threading. |
| Thread |
Metric ISO standard. Available as Fully Threaded (Continuous Thread), Double End Studs, and Tap End Studs. |
| Properties & Applications |
Critical for high-pressure flanged connections in the most severe environments. Hastelloy C-22 offers better overall corrosion resistance than C-276, providing outstanding protection against oxidizing and reducing aqueous media, as well as exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking. |
| Marking |
In accordance with ASTM F468. Standard markings for continuous thread studs are typically applied to the end faces, including Manufacturer Identification (Ananka) and the Grade identifier. |
| Qualification & Acceptance |
Independently tested for thread tolerance, hardness, chemical analysis, and supplied with EN 10204 Type 3.1 Material Test Certification. |
