HASTELLOY C276 THREADED RODS - DIN 976 / UNS N10276

Name: Ananka Group - India's Leading Fasteners Manufacturer Company
Rating: 5 (451 reviews)

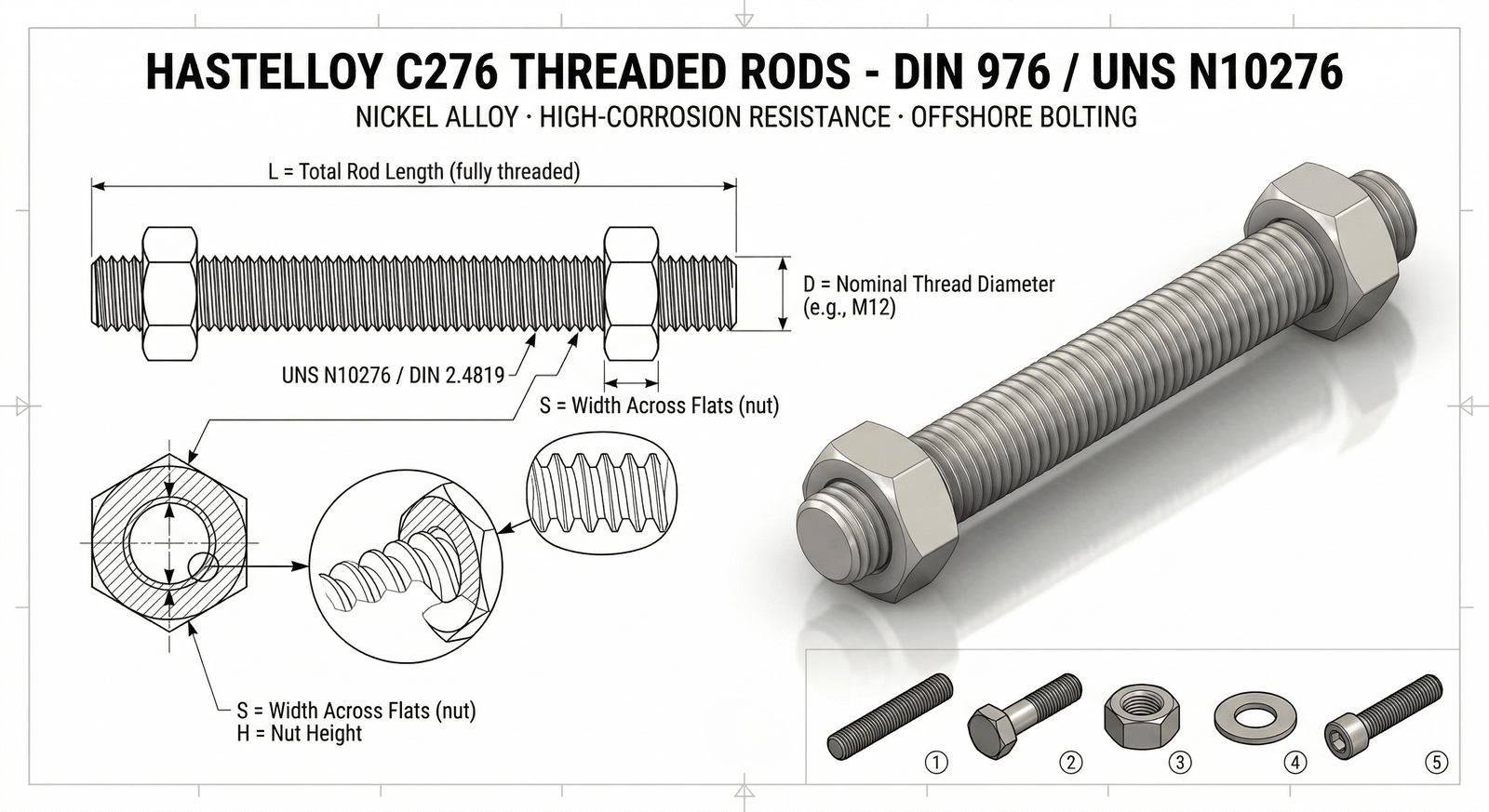

Hastelloy C276 Threaded Rod Continuous Thread CAD Drawing

■ Dimensions in mm (DIN 976)

PART NUMBER	THREAD	PITCH	NOMINAL DIAMETER (d) Max	THEORETICAL WEIGHT (Kg / Meter Approx)
AN-TR-C276-M3	M3	0.50	3.00	0.044
AN-TR-C276-M4	M4	0.70	4.00	0.078
AN-TR-C276-M5	M5	0.80	5.00	0.124
AN-TR-C276-M6	M6	1.00	6.00	0.177
AN-TR-C276-M8	M8	1.25	8.00	0.319
AN-TR-C276-M10	M10	1.50	10.00	0.500
AN-TR-C276-M12	M12	1.75	12.00	0.725
AN-TR-C276-M14	M14	2.00	14.00	0.970

Note: Threaded rods are standardly supplied in 1000mm, 2000mm, and 3000mm lengths. Contact Ananka Group for expanded diameters (M3 to M56) and custom cut-to-length services.

■ Technical Specifications

Material	Hastelloy C276 (Nickel-Molybdenum-Chromium Wrought Alloy)
Standard / Classification	UNS N10276 \| DIN 2.4819 Tensile Strength: 790 MPa min (110 ksi) Yield Strength (0.2% Offset): 355 MPa min (52 ksi) Hardness: 20 HRC Melting Point: 1370°C (2500°F)
Chemical Composition (%)	Ni: Balance \| Mo: 15.0 - 17.0 \| Cr: 14.5 - 16.5 \| Fe: 4.0 - 7.0 \| W: 3.0 - 4.5 \| C: 0.01 Max \| Mn: 1.0 Max \| V: 0.35 Max
Manufacturing Specification	Threaded in accordance with DIN 976-1 (replaces older DIN 975 standard). Material conforms to ASTM B574 (Standard Specification for Low-Carbon Nickel-Chromium-Molybdenum Rod).
Thread	Metric ISO standard. Fully threaded end-to-end (Continuous Thread).
Properties & Applications	Ideal for applications requiring immediate, on-site custom length cutting. C276 threaded rods offer unparalleled resistance to localized corrosion (pitting and crevice) and stress corrosion cracking in aggressive chemical processing, waste treatment, and sour gas environments.
Marking	Standard threaded rods are color-coded at the ends or stamped on the rod face with the Manufacturer Identification (Ananka) and Grade identifier, depending on diameter and client requirements.
Qualification & Acceptance	Independently tested for thread tolerance, hardness, chemical analysis, and supplied with EN 10204 Type 3.1 Material Test Certification.
