ASTM A194 GRADE 9C NUTS

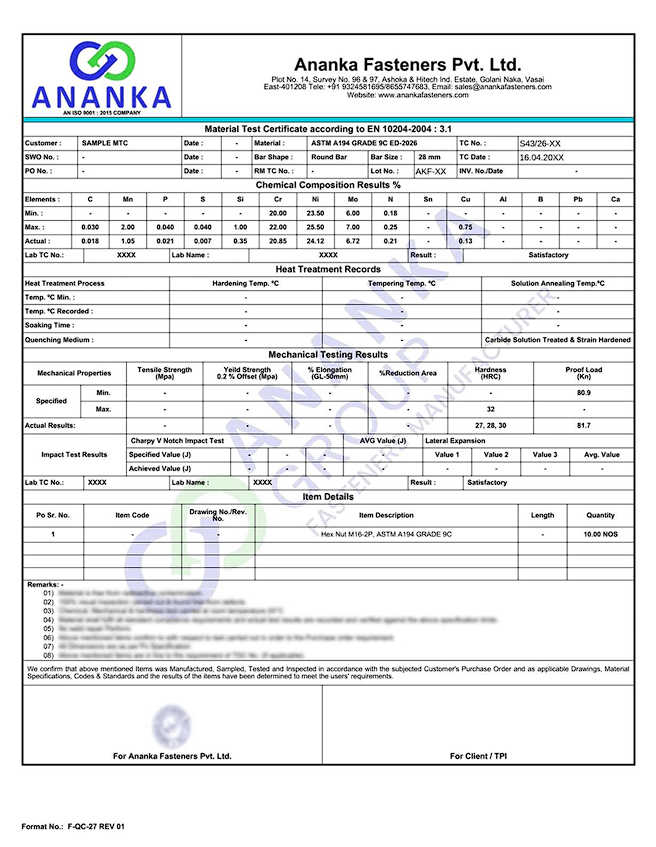

ASTM A194 Grade 9C Nuts Sample MTC Certificate
Access a comprehensive, professionally formatted Material Test Certificate according to EN 10204-2004: 3.1 for Columbium/Niobium-Stabilized Austenitic Stainless Steel Fasteners (ASTM A194 Grade 9C / UNS S34700). Review verified chemical distributions, customized post-machining Class 1A solution annealing matrices, and mechanical compliance profiles built for exceptional long-term high-temperature limits.
What's Inside This A194 Grade 9C MTC Certificate
This sample mill test certificate mirrors the thorough QA documentation parameters mandatory for Class 1A solution-annealed Columbium (Niobium) stabilized austenitic stainless steel heavy hex nuts shipped for severe corrosion and elevated thermal service setups.
- Full Traceability: Certified under unique tracking identification TC No.: S44/26-XX, fully mapping back to verified melting heat elements to secure product authenticity.
- Class 1A Solution Treatment: Explicitly logs that nuts have undergone mandatory solution annealing heat treatments after final tapping or forming phases to fully relieve microstructural stresses.
- Columbium (Niobium) Stabilization: Detailed chemical analysis confirming specialized Columbium/Niobium additions ($8 \times \text{C min}$ to 1.10% max) to bound carbon and completely mitigate intergranular corrosion across sensitization ranges.
- Controlled Structural Hardness: Reports verified mechanical testing properties maintaining maximum Brinell parameters up to 233 HBW (or 95 HRB Rockwell maximum) to safeguard against thread galling under high preloads.
- Quality Compliance: 100% visual inspection carried out and verified free from defects and radioactive contamination.
Live Preview: ASTM A194 Grade 9C MTC Data
Review the standard parameters and layout before downloading the full document.
TC Number
S44/26-XX
TC Date
12.11.20XX
Material Spec
ASTM A194 Grade 9C (UNS S34700 Class 1A)
Nut Profile / Size
Heavy Hex Nut / M20
Dimensions / Item
Heavy Hex Nut M20 x 2.5P
Quantity
500.00 NOS
Chemical Composition %
| C | Mn | P | S | Si | Cr | Ni | Cb (Nb) | Fe |
|---|---|---|---|---|---|---|---|---|
| 0.045 | 1.65 | 0.032 | 0.011 | 0.52 | 17.60 | 9.85 | 0.58 | Rem |
| Max: 0.08 | Max: 2.00 | Max: 0.045 | Max: 0.030 | Max: 1.00 | Min: 17.00 Max: 19.00 |
Min: 9.00 Max: 12.00 |
Min: 8xC Max: 1.10 |
Rem |
Mechanical & Hardness Properties
| BRINELL HARDNESS (HBW) | ROCKWELL HARDNESS (HRB) | PROOF LOAD STRESS (MPa) |
|---|---|---|
| 172 | 87 | 525 |
| Max: 233 | Max: 95 | Min: 515 (Heavy Hex Structural Standard) |
Standard References & Compliance
Our processing matrices coordinate directly with severe oil, gas, and power generation boundaries. Finished nut walls check out perfectly with zero surface cracks or dimensional variations detected.
| Standard / Requirement | Confirmation on Certificate |
|---|---|
| Visual Inspection | 100% visual inspection carried out & found free from defects. |
| Safety Requirements | Material is certified free from radioactive contamination. |
| Weld Repairs | No weld repairs performed on finished stainless elements. |
| Dimensional Accuracy | All thread clearances verified against standard ASME B18.2.2 requirements. |
Certification Details
We confirm that above mentioned Items was Manufactured, Sampled, Tested and Inspected in accordance with the subjected Customer's Purchase Order and as applicable Drawings, Material Specifications, Codes & Standards and the results of the items have been determined to meet the users' requirements.
Documentation Standard
- EN 10204-2004: 3.1 Certified
- Free from radioactive contamination
- Certified ISO 9001: 2015 Operation
Heat Treatments
- Class 1A Solution Annealed above 1040°C (1900°F)
- Liquid Quenched to preserve uniform alloy retention
Testing Conditions
- Hardness limits and proof load tracked at 25°C
- 100% thread path conformance verified
Technical FAQs — ASTM A194 Grade 9C MTC Certificate
Why is Columbium (Niobium) stabilization critical for Grade 9C nuts?
ASTM A194 Grade 9C nuts rely on Columbium/Niobium stabilization (matching AISI 347 chemistry profiles) to protect the crystalline matrix from intergranular corrosion. In high-temperature service environments between 427°C and 816°C (800°F to 1500°F), standard stainless steel experiences chromium carbide precipitation at the grain boundaries. Columbium binds with the carbon first, allowing Chromium to remain evenly distributed throughout the matrix to sustain optimal corrosion protection.
What separates Grade 9C from Grade 8T fasteners in high-temperature applications?
While Grade 8T (AISI 321) utilizes Titanium stabilization, Grade 9C (AISI 347) uses Columbium/Niobium. Columbium forms more stable carbides and does not volatilize as easily as titanium during thermal exposure or specialized welding treatments. This provides Grade 9C nuts with slightly superior creep-rupture performance and greater stability under long-term exposures exceeding 538°C (1000°F).
What is the technical significance of the Class 1A post-machining treatment?
The Class 1A specification requires that the nuts be fully solution annealed and liquid quenched *after* the final thread-tapping or cold-heading manufacturing stages. This cycle completely relieves the localized cold-work stress that can cause microstructural vulnerability, resetting the material to a uniform, ductile state with a certified hardness below 233 HBW to avoid thread galling.
