Grade 10.9 Sample MTC Certificate
Access a comprehensive, professionally formatted Material Test Certificate according to EN 10204-2004: 3.1 for Grade 10.9 high-tensile fasteners (ISO 898-1). Verify the exact documentation your QA teams will receive, featuring heat-traceable chemistry and mechanical verification.
What's Inside This Grade 10.9 MTC Certificate
This sample mill test certificate mirrors the rigorous QA documentation package shipped with every high-performance fastener from Ananka Fasteners.
- Full Traceability: Certified with exact Lot No.: AKHB/485 and TC No.: S03/26-XXX linked back to the original heat.
- Chemical Breakdown: Detailed results for Carbon (0.404%), Manganese (0.821%), and Sulfur (0.011%) ensuring metallurgical integrity.
- Heat Treatment Verification: Verified Hardening (880°C) and Tempering (540°C) cycles with recorded quenching mediums.
- Mechanical Properties: Comprehensive reporting of Tensile Strength (1108.250 MPa), Yield Strength (1026.660 MPa), and Hardness (32.1 - 32.7 HRC).
- Impact Toughness: Verified Charpy V Notch test results with an average value of 50.66 J.
- Dimensional Conformance: Confirmation of inspection as per DIN 931 standards.

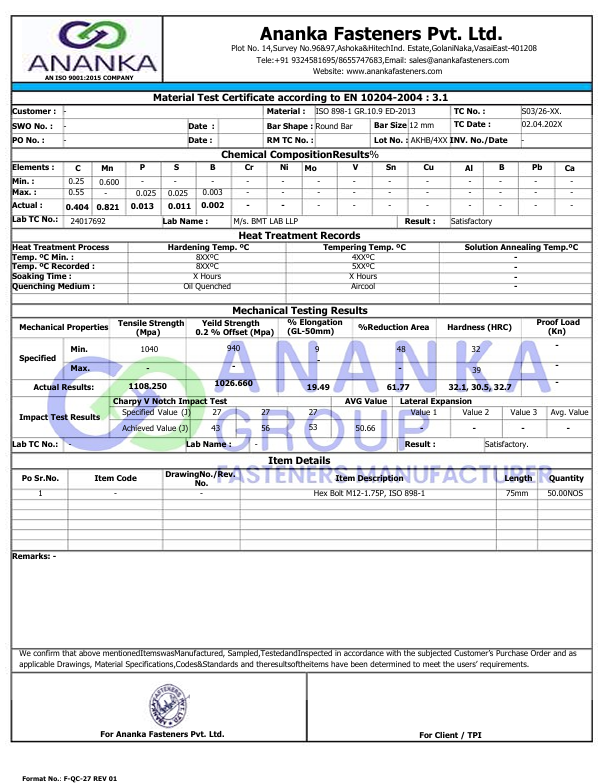

Live Preview: Grade 10.9 MTC Data
TC Number
S03/26-XXX
TC Date
02/04/202X
Heat Number
HT-109XXX
Lot Number
AKHB/XXX
Hardening Temp
880°C (Oil Quench)
Dimensions
M12 x 75mm (DIN 931)
Chemical Composition %
| Carbon (C) | Manganese (Mn) | Phosphorus (P) | Sulfur (S) | Boron (B) |
|---|---|---|---|---|
| 0.404 | 0.821 | 0.013 | 0.011 | 0.002 |
| Min: 0.25 | Max: 0.55 | Min: 0.60 | Max: 0.025 | Max: 0.003 | Max: 0.025 |
Mechanical Properties Verification (ASTM A370)
| Tensile (MPa) | Yield (MPa) | Elongation (%) | Reduction (%) | Hardness (HRC) |
|---|---|---|---|---|
| 1108.25 | 1026.66 | 19.49 | 61.77 | 32.1, 30.5, 32.7 |
| Min: 1040 | Min: 940 | Min: 9 | Min: 48 | 32 - 39 |
Standard References: ISO 898-1 Compliance
Our Grade 10.9 certificates confirm full compliance with ISO 898-1 standards for high-tensile alloy steel fasteners.
| Standard / Requirement | Confirmation on Certificate |
|---|---|
| Dimensional Spec | As per PO Specification (DIN 931). |
| Visual Inspection | 100% visual inspection carried out & found free from defects. |
| Weld Repairs | No weld repair performed. |
| Radioactive Contamination | Material is free from radioactive contamination. |
Ananka Fasteners' Certification Details
We certify that the fastener was manufactured sampled, tested and inspected in accordance with the specification and the results have been determined to meet the requirements of the specification.
Documentation
- EN 10204 3.1 Standard
- ISO 9001:2015 Compliant
Processing
- Hardening Temp: 880°C
- Tempering Temp: 540°C
- Oil Quench Verified
Testing
- Charpy Impact Verified
- Dimensional Compliance
Technical FAQs — Grade 10.9 MTC Certificate
What heat treatment methodology is tracked?
The MTC logs a hardening cycle at 880°C followed by oil quenching and a tempering cycle at 540°C to achieve the high tensile strength characteristic of Grade 10.9.
What specific tests are logged?
The report includes chemical analysis, mechanical testing (Tensile, Yield, Elongation, Reduction Area), Hardness testing (HRC), and Charpy Impact testing.
Are visual/dimensional inspections included?
Yes, the certificate confirms 100% visual inspection and dimensional conformance according to DIN 931.
