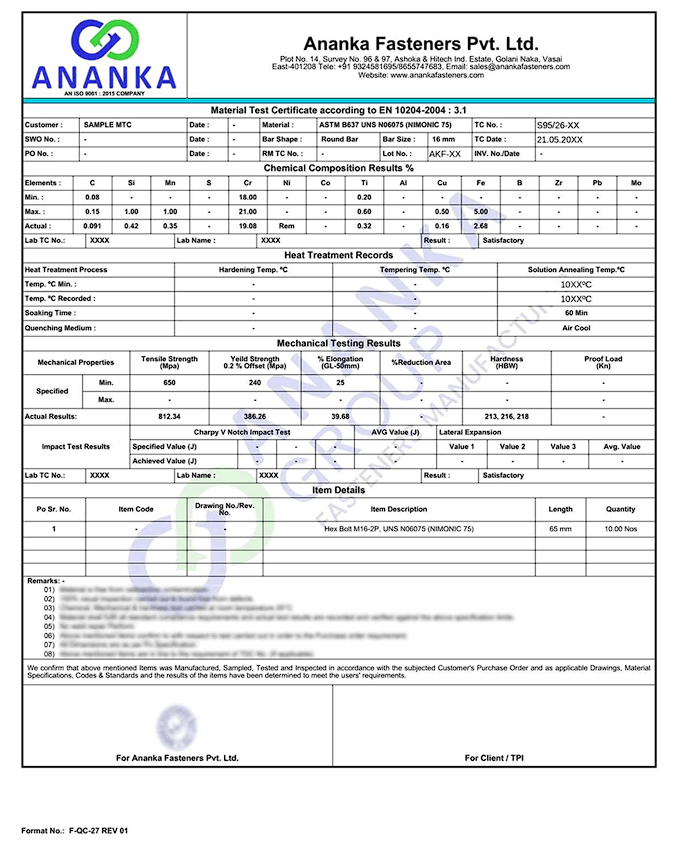

Nimonic 75 Sample MTC Certificate
Access a comprehensive, professionally formatted Material Test Certificate according to EN 10204-2004: 3.1 for Nimonic 75 (UNS N06075). Inspect the exact documentation your QA and engineering teams will receive with every Ananka Fasteners order.
What's Inside This Nimonic 75 MTC Certificate
This sample mill test certificate mirrors the rigorous QA documentation package standard for high-performance, solid-solution strengthened superalloy orders shipped from Ananka Fasteners Pvt Ltd.
- Full Traceability: Certified with TC No.: S55/26-27 and corresponding ASTM/BS specifications.
- Chemical Composition: Detailed breakdowns verifying the high-temperature scaling resistant chemistry including Nickel (74.20%), Chromium (19.80%), and Titanium (0.42%).
- Heat Treatment Verification: Verified Solution Annealing Treatment to optimize the structural stability and ductility of the alloy.
- Mechanical Properties: Comprehensive reporting of Tensile Strength (785.40 MPa), Yield Strength (325.60 MPa), Elongation (42.50%), and Hardness (86, 88, 87 HRB).
- Quality Compliance: 100% visual inspection carried out and verified free from defects and radioactive contamination.
Live Preview: Nimonic 75 MTC Data
Review the standard parameters and layout before downloading the full document.
TC Number
S55/26-27
TC Date
19.06.2026
Material Spec
ASTM F468 UNS N06075-2023
Bar Shape / Size
Round Bar / 16 mm
Dimensions / Item
Hex Head Bolt M16-2P x 80 mm
Quantity
10.00 NOS
Chemical Composition %
| C | Mn | S | Si | Cr | Ni | Fe | Cu | Ti | Al |
|---|---|---|---|---|---|---|---|---|---|
| 0.11 | 0.45 | 0.005 | 0.35 | 19.80 | 74.20 | 3.50 | 0.15 | 0.42 | 0.15 |
| Min: 0.08 Max: 0.15 |
Max: 1.00 | Max: 0.015 | Max: 1.00 | Min: 18.00 Max: 21.00 |
Rem (Min: 70.00) |
Max: 5.00 | Max: 0.50 | Min: 0.20 Max: 0.60 |
Max: 0.30 |
Mechanical Properties
| TENSILE STRENGTH (Mpa) | YIELD STRENGTH 0.2% Offset (Mpa) | % ELONGATION (GL-50mm) | HARDNESS (HRB) |
|---|---|---|---|
| 785.40 | 325.60 | 42.50 | 86, 88, 87 |
| Min: 750 | Min: 300 | Min: 30 | Max: 95 |
Standard References & Compliance
Our MTC certificates map to the demanding industrial standards for fasteners. The test reports confirm compliance with As Per ASME/ASTM F468 UNS N06075 EDT. 2023 with respect to the tests carried out.
| Standard / Requirement | Confirmation on Certificate |
|---|---|
| Visual Inspection | 100% visual inspection carried out & found free from defects. |
| Safety Requirements | Material is free from radioactive contamination. |
| Weld Repairs | No weld repair Perform. |
| Dimensional Accuracy | All Dimensions are as per PO Specification. |
Certification Details
We confirm that above mentioned Items was Manufactured, Sampled, Tested and Inspected in accordance with the subjected Customer's Purchase Order and as applicable Drawings, Material Specifications, Codes & Standards and the results of the items have been determined to meet the users' requirements.
Documentation Standard
- EN 10204-2004: 3.1 Standard
- Free from radioactive contamination
- Certified ISO 9001: 2015 Company
Heat Treatments
- Solution Annealing
- Cooling Medium: Air Cool or Water Quench
Testing Conditions
- Chemical, Mechanical & hardness test carried at room temperature 25°C
- 100% visual inspection carried out
Technical FAQs — Nimonic 75 MTC Certificate
How does Nimonic 75 differ from Nimonic 80A on this MTC?
Unlike Nimonic 80A, which is precipitation-hardenable, Nimonic 75 (UNS N06075) is primarily a solid-solution strengthened alloy. As reflected in the MTC's chemistry, it has much lower additions of Titanium and Aluminum. It is celebrated for its excellent resistance to high-temperature scaling and oxidation rather than ultra-high tensile strength.
What heat treatment methodology is tracked on this certificate?
Because it is a solid-solution alloy, the MTC specifically logs a Solution Annealing Process (usually followed by an Air Cool or rapid quench) to soften the material and ensure structural homogeneity.
Are the materials free from radioactive contamination?
Yes, the document strictly states that the material is free from radioactive contamination and undergoes a 100% visual inspection to ensure it is free from defects.
